TECHNICAL DATASHEET
DETECTOR
MODEL NUMBER: DH01Y0—GE—1410.png)
GENERAL
Detector is a battery powered camera that is triggered by motion detection or tamper sensor. It can also be activated at preconfigured times set by an operator.
Operating temperature range
| -40°C to +60°C
|
IP rating
| X7 (waterproof)
|
Weight (including battery)
| 700g
|
Dimensions
| 85x120x100mm
|
MOTION DETECTION
Reconeyez detector uses passive infrared (PIR) sensor and signal analysis to track thermal signature across the monitored area. If motion is detected an alarm is generated and the camera is activated.
Maximum detection range
| 35m
|

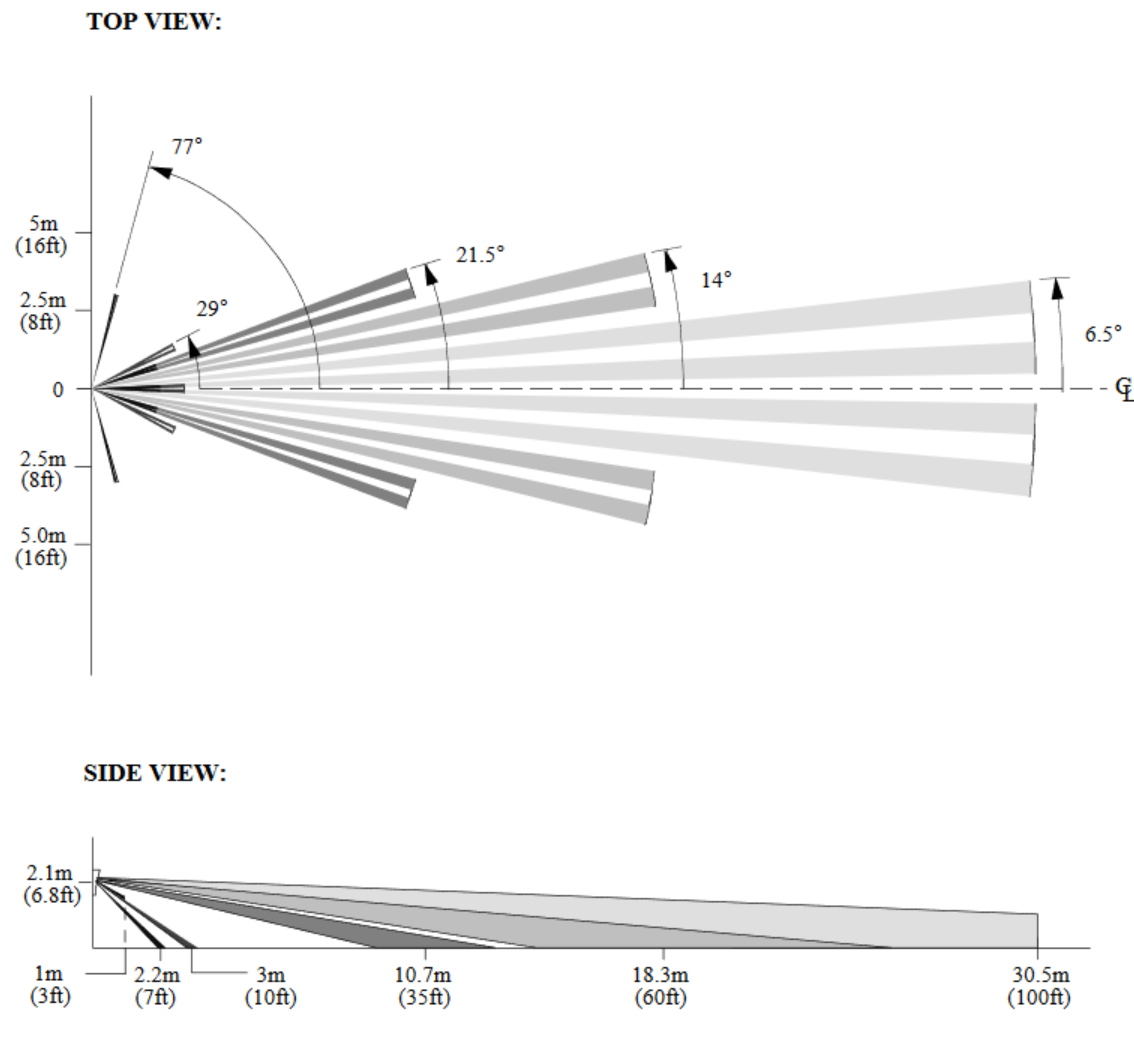

Detection angles
(areas shown on
figure on the right)
| 13° @ 30.5m
28° @ 18.3m
43° @ 10.7m
154° @ 2.2m
|
Minimum alarm interval
| Configurable (default 0s -
limited by camera to ~1.5s)
|
Sensitivity
| Configurable
|
SHORT RANGE RADIO
Short-range 2.4GHz radio is used for two-way communication between the Detector and other Reconeyez devices.
Standard
| IEEE 802.11.4
|
Bandwidth
| 2 MHz
|
Data rate
| 250 kbps
|
Modulation
| QPSK
|
Antenna
| omnidirectional
|
EIRP
| 12 dBm
|
Security
| ECC (secp160r1)
|
Authentication & encryption
| AES 128
|
Max LOS distance
| 500 m
|
Network topology
| mesh
|
CAMERA
Camera module comprises a day camera for colour imaging, a night camera for monochrome imaging and an infrared illuminator for dark conditions. Camera stores full size raw images in internal memory and smaller size jpg images are uploaded to the command center server.
Internal memory
Storage capacity
Downloaded image size
| 7.6 GB
1800+ images
Thumbnail ~20 kB
|
Day camera
Picture resolution
Raw image size
Horizontal angle
|
1920 x 1080
4.2 MB
56°
|
Night camera
Picture resolution
Raw image size
Horizontal angle
|
1280 x 960
2.5 MB
63°
|
BATTERY
Detector is powered by 1 rechargeable Li-Ion battery.
Voltage | 3.7V |
Capacity | 10.2 Ah |
Lifetime | up to 400 days standby/ up to 50,000 events |
Time to recharge | 7-12 hours (depending on charge type) |
Auxiliary solar panel | optional |
